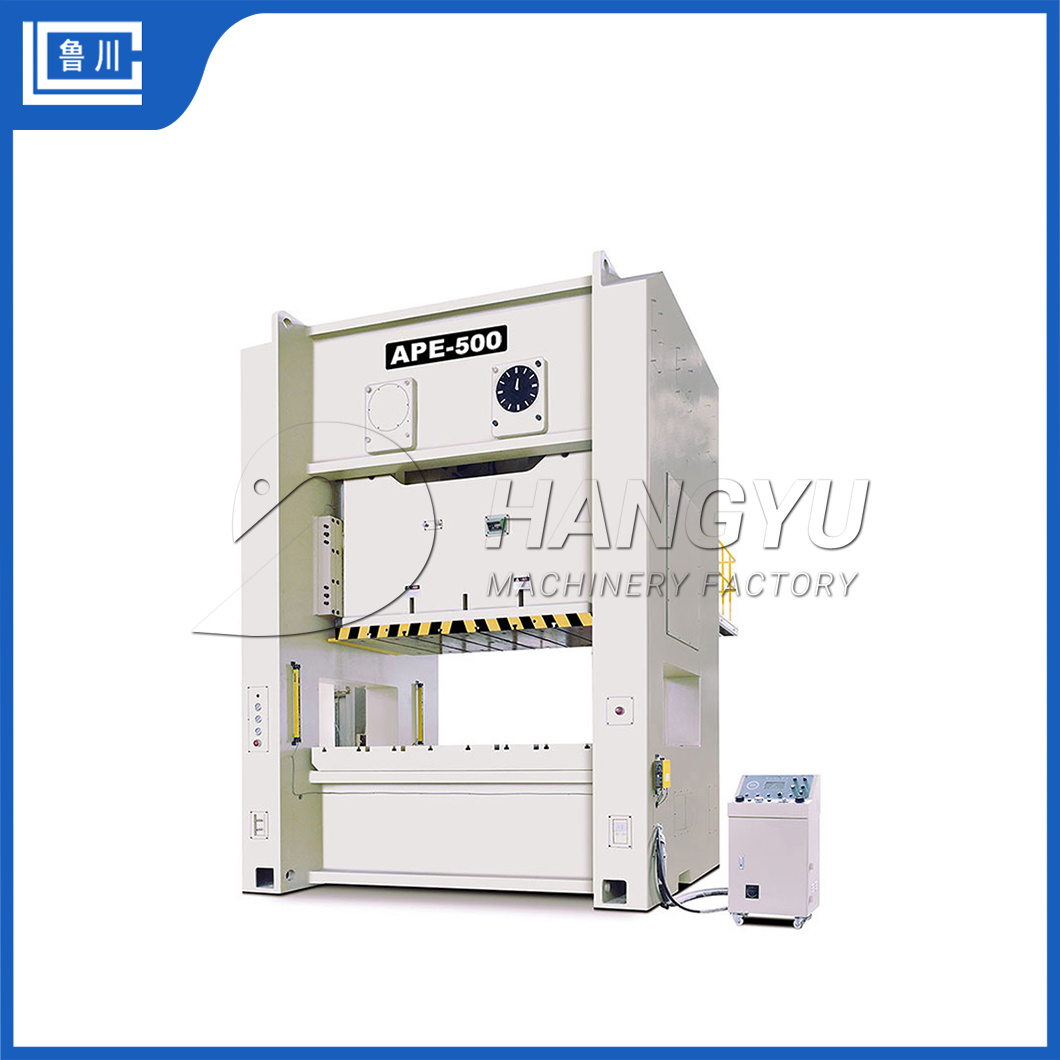

Factory Press 300 Ton 400 Ton Press Machine Aida Same Quality Level Favourabe Price

After-sales Service: Warranty of Core Components 24 Months
Warranty: Warranty of Core Components 24 Months
Type: General Punching Machine
Punch Shape: Semi-Open Punch
Slider Movement: Double Action
Slider Drive Mechanism: Link Press

MESSAGE

Overview

Product Description

Detailed Photos

Our Advantages

Product Parameters

Company Profile

FAQ

Controlling Mode	Artificial	Automatic Grade	Semiautomatic
Power Source	Mechanical Drive	Precision	Normal Precision
Certification	GS, CE, RoHS, ISO 9001	Condition	New
Product Name	Pneumatic Press Machine	Keywords	Punching Press Machine
Model Number	Ape-160/200/250/300/400/500/600	Machine Type	Punching Machine
Ape Power Source	Pneumatic	Key Selling Points	Automatic
Machinery Test Report	Provided	Video Outgoing-Inspection	Provided
Core Components	Bearing, Pump, Gear, Motor, Gearbox, PLC, Pressure	CNC or Not	Normal
Slide Stroke (mm)	300	Voltage	380
Dimension(LWH)	4300X2300X5870mm	Motor Power (Kw)	30
Package	Wooden Case	Transport Package	Steel Pallet
Specification	APE	Trademark	HANGYU MACHINE
Origin	Shandong, China	HS Code	8462490000
Production Capacity	500 Units/Month

Specification	APE-160		APE-200		APE-250		APE-300		APE-400 APE-500 APE-600
Model	S	H	S	H	S	H	S	H	S	H	S	H	S	H
AA	2590		3000		3700		3700		4100		4300		4700
AB	2240		2700		3350		3350		3750		3900		4250
AC	1800		2200		2500		2500		3200		3300		3500
AD	1880		2290		2800		2800		3300		3450		3650
AE	1600		1850		2100		2100		2800		2900		3100
BA	1400		1750		1800		1800		2100		2300		2550
BB	1200		1550		1450		1450		1940		2050		2200
BC	700		900		900		900		900		1000		1100
BD	2150		2500		2950		2950		3129		3750		3900
HA	800		900		1000		1000		1200		1200		1200
HB	450	400	500	450	550	450	550	450	550	450	580	480	600	500
HC	190	130	250	150	280	170	300	170	300	170	300	180	300	180
HD	3400	3300	3750	3600	4250	4040	4400	4170	5195	4965	5870	5620	6100	5870
HF	900		900		1000		1000		1150		1150		1150
HE	450		600		600		600		600		600		600

	APE-160			APE-200		APE-250		APE-300		APE-400		APE-500		APE-600
Mode		S	H	S	H	S	H	S	H	S	H	S	H	S	H
Capacity	Ton	160		200		250		300		400		500		600
Pated Teneage Point	Mm	6	3	6	3	7	3	7	3	7	3	10	6	10	6
Stroke	Min	180	130	250	150	280	170	300	170	300	170	300	180	300	180
Speed Changing	S.P.M	30-55	40-85	20-50	35-70	20-40	30-60	20-35	30-50	20-30 20-40		18-25	20-30	15-25	20-30
Max. Die, Hight	Mm	450	400	500	450	550	450	550	450	550	450	580	480	600	500
Slide Adjustment	Mm	00		120		20		20		120		120		120
Slide Area	Mm	1600×650		1850×750		2300×900		2300×900		A:2300×1000		3000X1000		3200X1100
										8:2500×1000
										C:2900×1000
Bohtrr Area	Mm	1800X760		2200×940		2500X1000		2500×1000		A:2500×1000		3300X1200		3500X1200
										B:2800×1000
										C:3200×1000
Side Opening	Mm	700×450		900×600		900×600		900×600		900X600		000X750		1100X750
Main Motor	KwxP	15×4		18.5×4		22×4		30×4		37X4		45X4		55X4
Slide Adjust Device	KwxP	1X 4		2×4		2X4		2×4		2X4		3X4		1X4
Air Pressure	Kg/Cm2	6		6		6		6			6	6			6
Presses Precision	GB(IS)1Dass

Why Choose Us:
1. Quality Assurance: Before Shipping Out Our Machines, We Thoroughly Test Them For A Few Days Using Your Materials. This Ensures That You Receive A Machine That Performs At Its Best, Meeting Your Expectations And Requirements.

2. Elite Team Support: Our Dedicated Team Of Professionals Is Here To Provide You With Exceptional, Customized, And Comprehensive Services. Whether You Need Assistance Or Have Any Questions, You Can Reach Out To Us Through Various Channels.

How We Provide Efficient Services (Metal Processing Solution:
We Follow A Simple Three-Step Process To Ensure We Meet Your Metal Processing Needs:

1. Gather Requirements: We Start By Understanding Your Specific Requirements Based On Your Working Station. This Allows Us To Tailor Our Solutions To Your Unique Situation.

2. Analyze And Provide Feedback: Our Experts Analyze The Information You Provide And Offer Valuable Feedback. We Believe In Open Communication And Collaboration To Ensure We Deliver The Best Possible Solutions.

3. Offer Options: Based On Your Specific Needs, We Provide You With Options. For Standard Products, We Offer Professional Recommendations. For Non-Standard Products, We Can Provide Professional Designing Services. Our Goal Is To Provide You With The Most Suitable Solutions For Your Metal Processing Needs.
